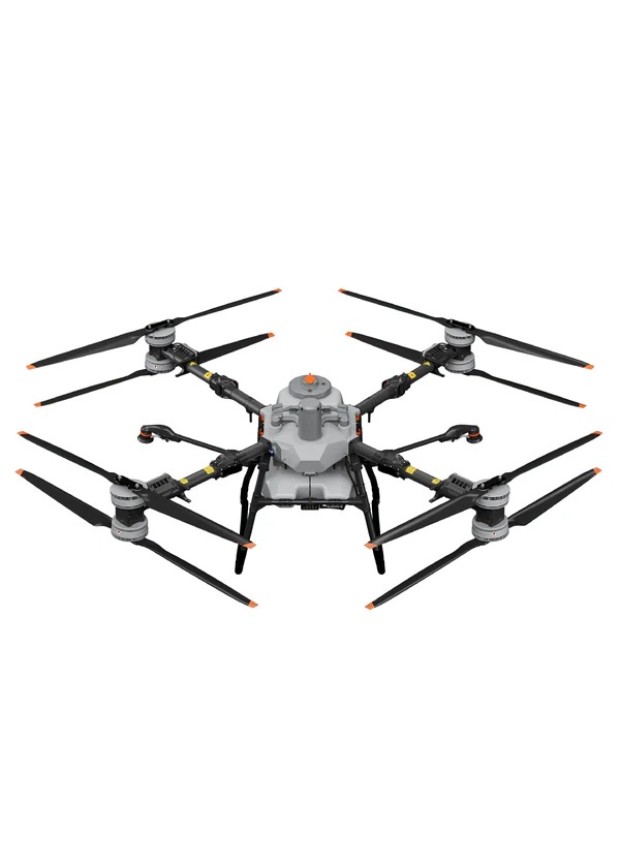

DJI AGRAS T100 DRONE
- Product Code:DJI AGRAS T100 DRONE
- Availability:In Stock
$12,300.00
The DJI = is DJI’s flagship heavy-duty agricultural drone designed for large-scale spraying, spreading, and transport operations. It represents the top tier of the Agras lineup, built for plantations, rice farms, commercial crop operators, and agro-service contractors.
Below is a structured technical specification sheet suitable for marketing, quotation, or technical documentation.
General Overview
| Category | Specification |
|---|---|
| Drone Type | Agricultural multi-rotor UAV |
| Tank Capacity (Liquid) | 100 L |
| Spreading Tank Capacity | 150 L |
| Max Payload Capacity | 100 kg |
| Max Takeoff Weight | ≈148–177 kg (depending on configuration) |
| Structure | Carbon-fiber frame, coaxial dual-rotor system |
| Motors | 8 high-power motors |
| Max Speed | Up to 72 km/h |
| Max Flight Endurance | ~6–8 minutes (full load) |
Spraying System
| Feature | Specification |
|---|---|
| Spray Tank | 100 L |
| Flow Rate | Up to 30–40 L/min |
| Spray Width | Up to ~11 m |
| Atomization | Dual centrifugal atomizers |
| Droplet Size | ~50–500 μm |
| Coverage per Flight | ~5–6 hectares |
| Typical Coverage Rate | ~55–60 ha/hour (operational average) |
Designed for:
- pesticides
- herbicides
- fungicides
- foliar fertilizers
Spreading System
| Feature | Specification |
|---|---|
| Hopper Capacity | 150 L |
| Max Spreading Payload | 100 kg |
| Spreading Flow Rate | Up to 400 kg/min |
| Granule Size Support | 0.5–10 mm |
| Materials Supported | Seeds, fertilizer, feed, pellets |
Transport & Logistics Mode
The Agras T100 also functions as a cargo-lift agricultural drone.
| Feature | Specification |
|---|---|
| Lifting Capacity | 100 kg |
| Auto Load Detection | Yes |
| Balance Control | Automatic |
| Route Automation | Supported |
Useful for:
- fertilizer delivery
- orchard logistics
- plantation transport
- remote farm supply drops
Flight Performance
| Feature | Specification |
|---|---|
| Max Speed | 72 km/h |
| Terrain Following | LiDAR-based automatic altitude tracking |
| Obstacle Avoidance | Radar + vision + LiDAR fusion |
| Positioning | RTK high-precision navigation |
| Coverage Efficiency | Up to 60 ha/hour typical operations |
Intelligent Safety & Sensors
The T100 includes DJI’s most advanced sensing suite:
| Sensor | Function |
|---|---|
| LiDAR | Terrain mapping & altitude control |
| Millimeter-wave radar | Obstacle detection |
| Penta-Vision system | 360° environmental awareness |
| FPV camera | Real-time flight monitoring |
| Auto obstacle memory | Route optimization |
These systems allow safe operation in:
- orchards
- hills
- uneven terrain
- tree-dense plantations
Battery & Power System
| Feature | Specification |
|---|---|
| Battery Type | DB2160 Intelligent Flight Battery |
| Capacity | ~41,000 mAh |
| Charge Time | ~15–18 minutes fast charging |
| Cycle Life | 1,200–1,500 cycles |
| Generator Support | D14000iE inverter generator compatible |
Physical Dimensions
| Configuration | Size |
|---|---|
| Unfolded | ~3220 × 3224 × 975 mm |
| Compact Transport Size | Foldable frame |
| Empty Weight | ~75 kg |
Smart Control & Software
| Feature | Specification |
|---|---|
| Flight Planning | Automatic route generation |
| Terrain Mapping | 3D LiDAR terrain follow |
| SmartFarm App | Mission monitoring & analytics |
| Controller | DJI Smart Controller Enterprise |
| Connectivity | Optional 4G telemetry support |
Core Applications
The Agras T100 supports three primary agricultural roles:
1. Crop Spraying
Rice, wheat, corn, soybeans, citrus, palm plantations
2. Fertilizer & Seed Broadcasting
Granular fertilizer, grass seed, feed pellets
3. Transport Operations
Moving agricultural inputs across large farms
Key Advantages Over Earlier Agras Models
Compared with T50 / T70 series:
- Larger 100 L spray tank
- 150 L spreading hopper
- 100 kg lift payload
- Faster 72 km/h transit speed
- LiDAR terrain-follow automation
- Higher hectare-per-hour productivity
Typical Package Contents
Most international supply packages include:
- DJI Agras T100 aircraft
- Remote controller
- Intelligent battery (1–3 units depending on bundle)
- Charger / generator compatibility kit
- Spraying system
- Spreading system
- Tool kit & maintenance parts
