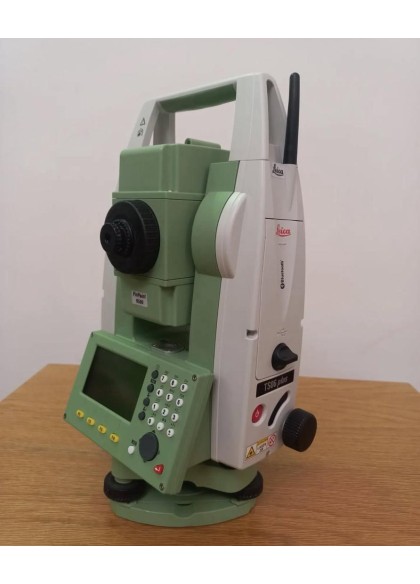

2013 LEICA FLEXLINE TS06 R500 PLUS 2" TOTAL STATION

The 2013 Leica FlexLine TS06 Plus R500 2" Total Station is a high-precision surveying instrument with impressive specifications:

Key Features

- Angular Accuracy: 2" (standard deviation ISO-17123-3)

- Distance Measurement Range:

    - Reflectorless Mode: up to 500 meters (R500)

    - Prism Mode: up to 3,500 meters (round prism) or 10,000 meters (prism-long)

- Distance Measurement Accuracy:

    - Prism Mode: 1.5 mm + 2 ppm

    - Reflectorless Mode: 2 mm + 2 ppm

- Electronic Distance Measurement (EDM): PinPoint EDM with coaxial laser pointer and measurement beam

Technical Specifications

- Display: High-resolution black and white LCD display with graphics and illumination

- Keyboard: Full alpha-numerical keyboard with function keys and optional second keyboard

- Memory: Internal memory stores up to 100,000 fix points and 60,000 measurements

- Interfaces: USB Type A and mini B, Bluetooth wireless technology

- Power: Lithium-Ion battery with up to 30 hours of operating time

- Weight: 5.1 kg (including GEB211 battery and tribrach)

Additional Details

- Laser Plummet: Laser point with 5 levels of brightness and centering accuracy of 1.5 mm at 1.5 meters

- Guide Light: Optional Electronic Guide Light (EGL) for stakeout with working range of 5-150 meters

- Software: FlexField plus onboard software and optional FlexOffice Software for data management and analysis

- Theft Protection: mySecurity feature locks the instrument in case of theft, providing peace of mind
